FS2 – Collective Shelter

The Fireproof and Waterproof Collective Shelter is specially designed to promote the safety and protection of combat personnel, in extreme situations of entrapment by fire, where the existing environmental conditions of temperature and gases are incompatible with human life.

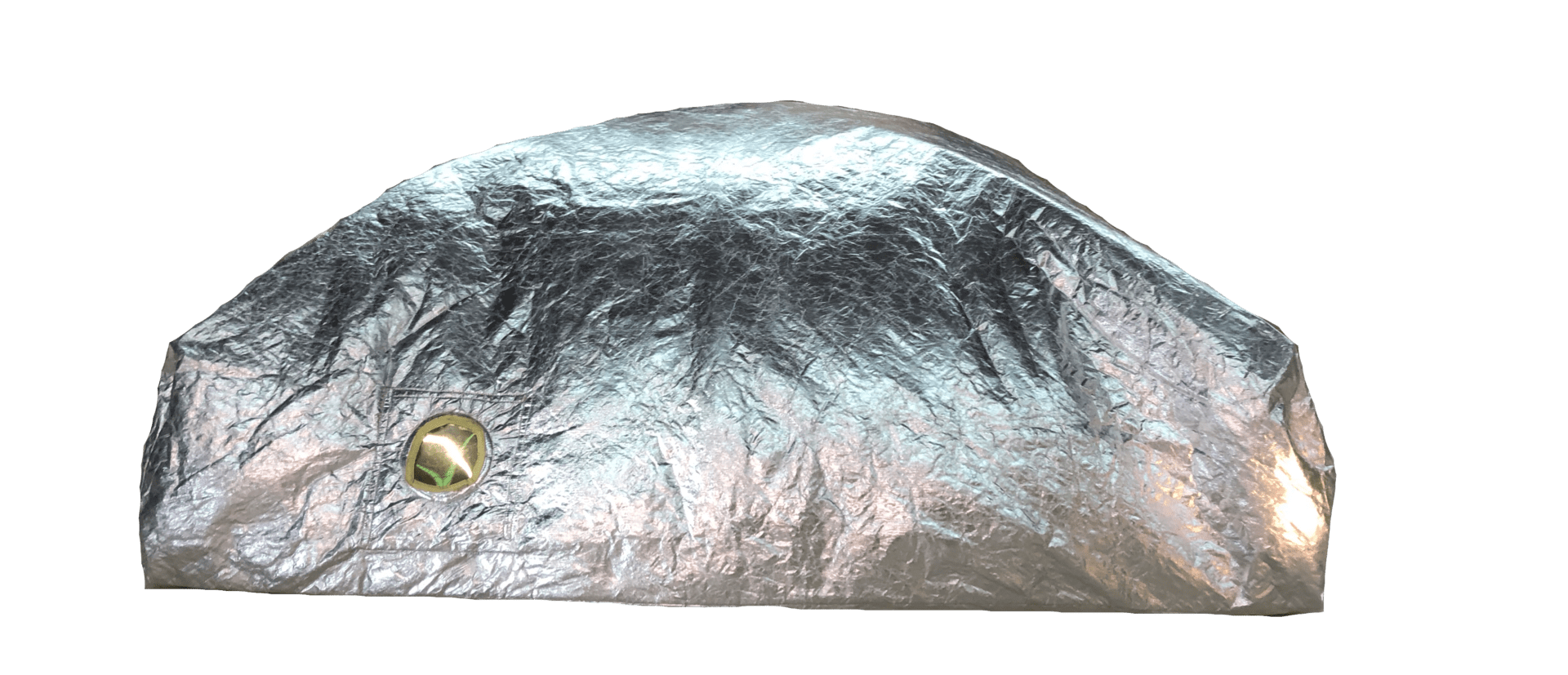

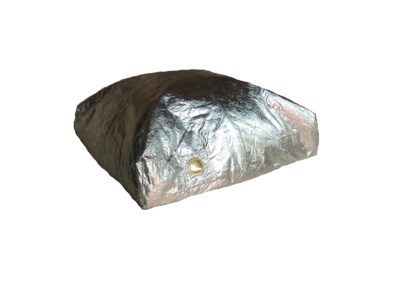

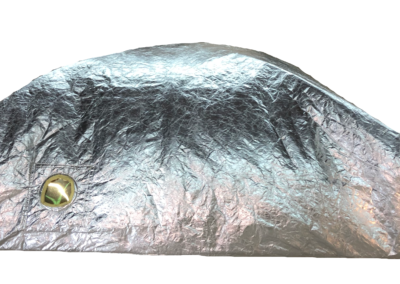

FIREPROOF COLLECTIVE SHELTER

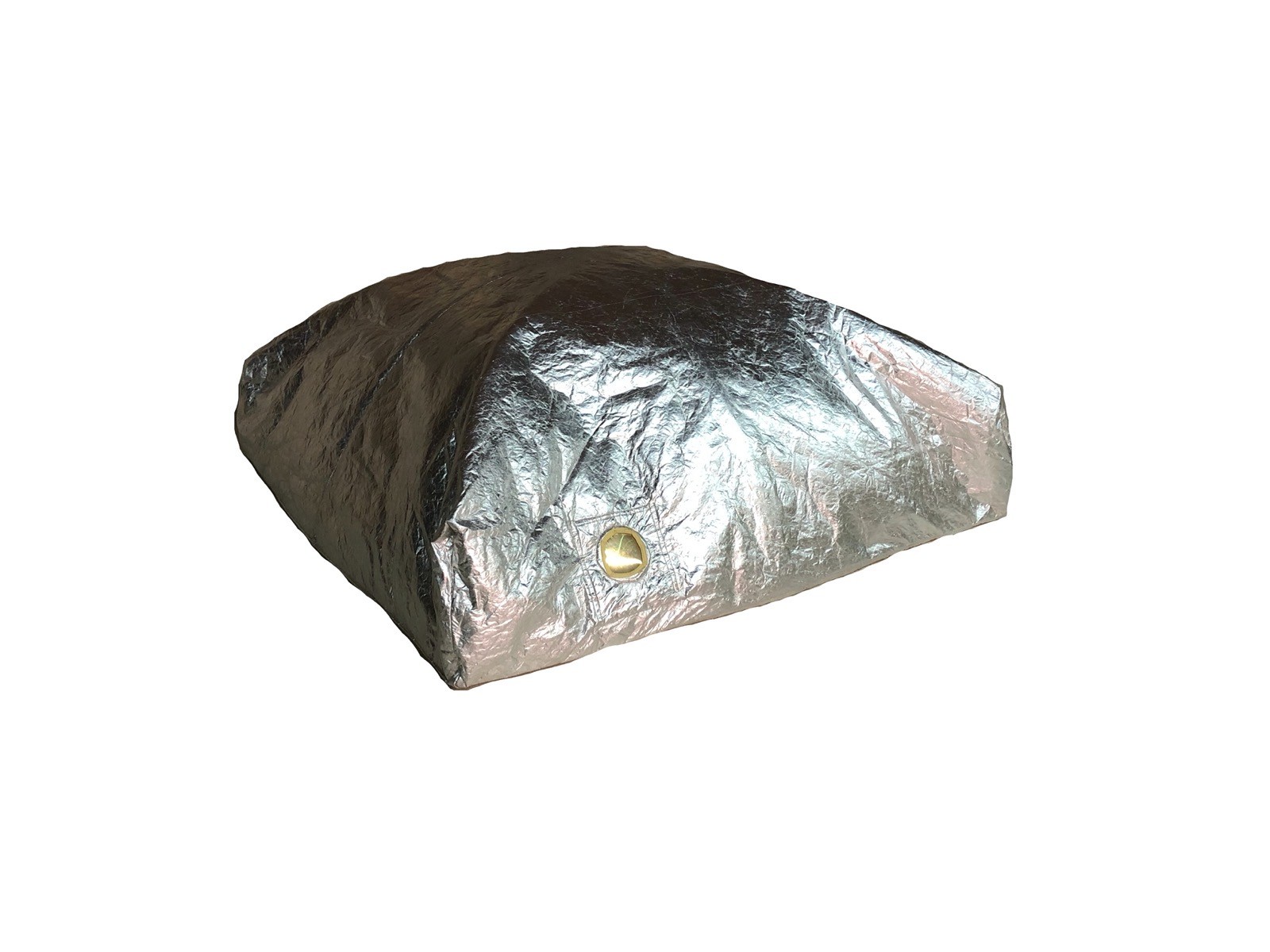

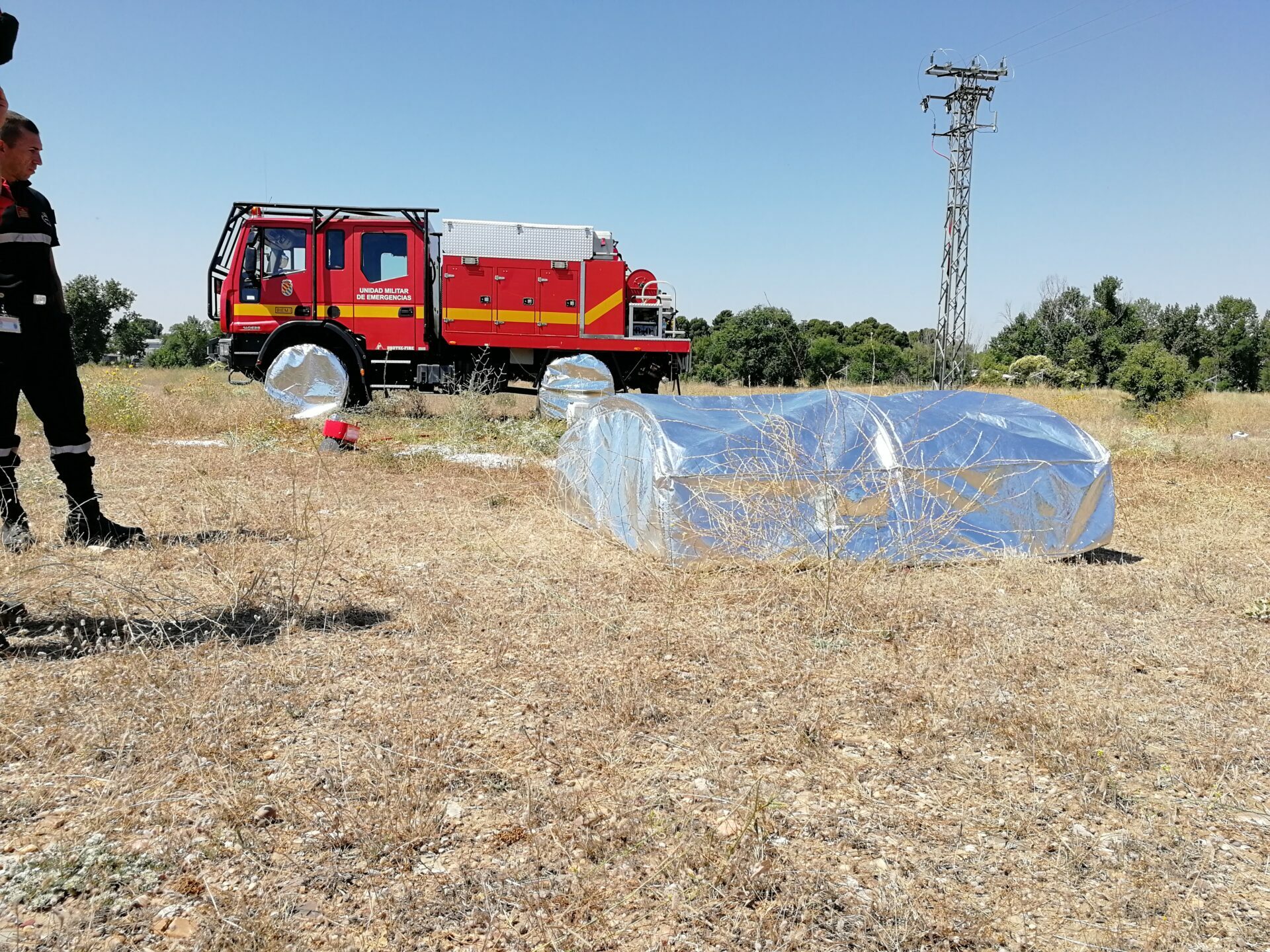

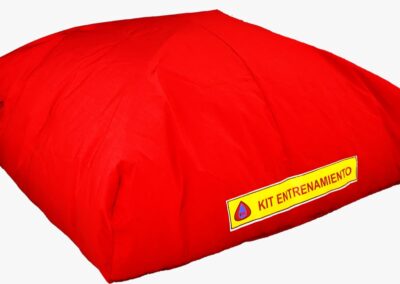

The Fireproof Collective Shelter is designed to increase the safety and protection of combatant personnel, in the case of extreme situation of fire entrapment where the environmental conditions of temperature and gases are incompatible with life. It is a roof built with fireproof materials for protection against convective and radiant heat from short-distance flames. Its benefits, as well as its purpose, allow it to obtain the consideration of collective protection equipment in the fire industry.​

  • Protective equipment for collective use.​
  • Thermal display screen.​
  • Thermal and gas protection.​
  • Quick deployment system.​
  • Autonomous lighting system.​
  • Autonomous breathing system.​
  • Gas sealing system.​
  • Portable geolocation device attached by fire
  • retardant cover (optional).​
  • OXYGEN detector (optional).​
  • Possibility of configuration for different tasks.​

Technical characteristics

Conformities: European General Product Safety Directives 2001/95/CE, Royal Decree 1801/2003 and Directives on minimum health and safety requirements for the use of work equipment by workers, Directive 89/655/CEE, Directive 95/63/CEE, Directive 2001/45/CE and Royal Decree 1215/1997.

Certification of the fabric: The set of layers that make up the fabric has been certified by a notified body accredited by ENAC and in accordance with the UNE EN ISO 11612 and EN 469/A1 standards, according to:

  • EN ISO 15025
  • ISO 9151
  • EN ISO 6942
  • ISO 12127-1
  • ISO 17493
  • EN ISO 13934-1
  • EN ISO 13937-2
  • EN ISO 13935-2

Accredited Notified Body Number: 0161
Test report number: 2017 EP3190

Performance

Indoor radiant and convective heat protection against flames with a maximum power of up to 600 kW, a half-flame speed of up to 20 km/h and a minimum distance of 1.5 m from the front of the shelter.

Indoor radiant and convective heat protection against flames up to 10.5 m wide with a maximum power up to 80 MW, without forced ventilation and at a minimum distance of 2 m from the front of the shelter.

Performance level obtained in EN ISO 11612 fabric certification:

  • A1 (EN ISO 15025, Procedure A)
  • A2 (EN ISO 15025, Procedure B)
  • B2 (ISO 9151)
  • C4 (EN ISO 6942, Method B)
  • F3 (ISO 12127-1)
  • COMPLIES (ISO 17493)
  • COMPLIES (EN ISO 13934-1)
  • COMPLIES (EN ISO 13937-2)
  • COMPLIES (EN ISO 13935-2)

Performance level obtained in the EN 469/A1 fabric certification:

  • LEVEL 2 (ISO 9151)
  • LEVEL 2 (EN ISO 6942, Method B)
  • COMPLIES (ISO 17493)
  • COMPLIES (EN ISO 13934-1)
  • COMPLIES (EN ISO 13937-2)
  • COMPLIES (EN ISO 13935-2)

Capacity, dimensions and weight

  • (L) 2 m x (H) 0.7 m x (W) 3 m.
  • Carrying bag: (L) 750 mm x (H); 250 mm x (W) 600mm.
  • Weight: 15 kg.
  • Breathing Air Consumption: 12 litres at 300
  • Bar, provides a constant flow rate of over 20 minutes for 6 persons.
  • Optional accessories: Geolocation system and oxygen meter.

Includes the following components :

  • Fireproof shelter for 4 or 6 people
  • Lighting system
  • 4 or 6 breathing air masks, according to model
  • Vacuum pump

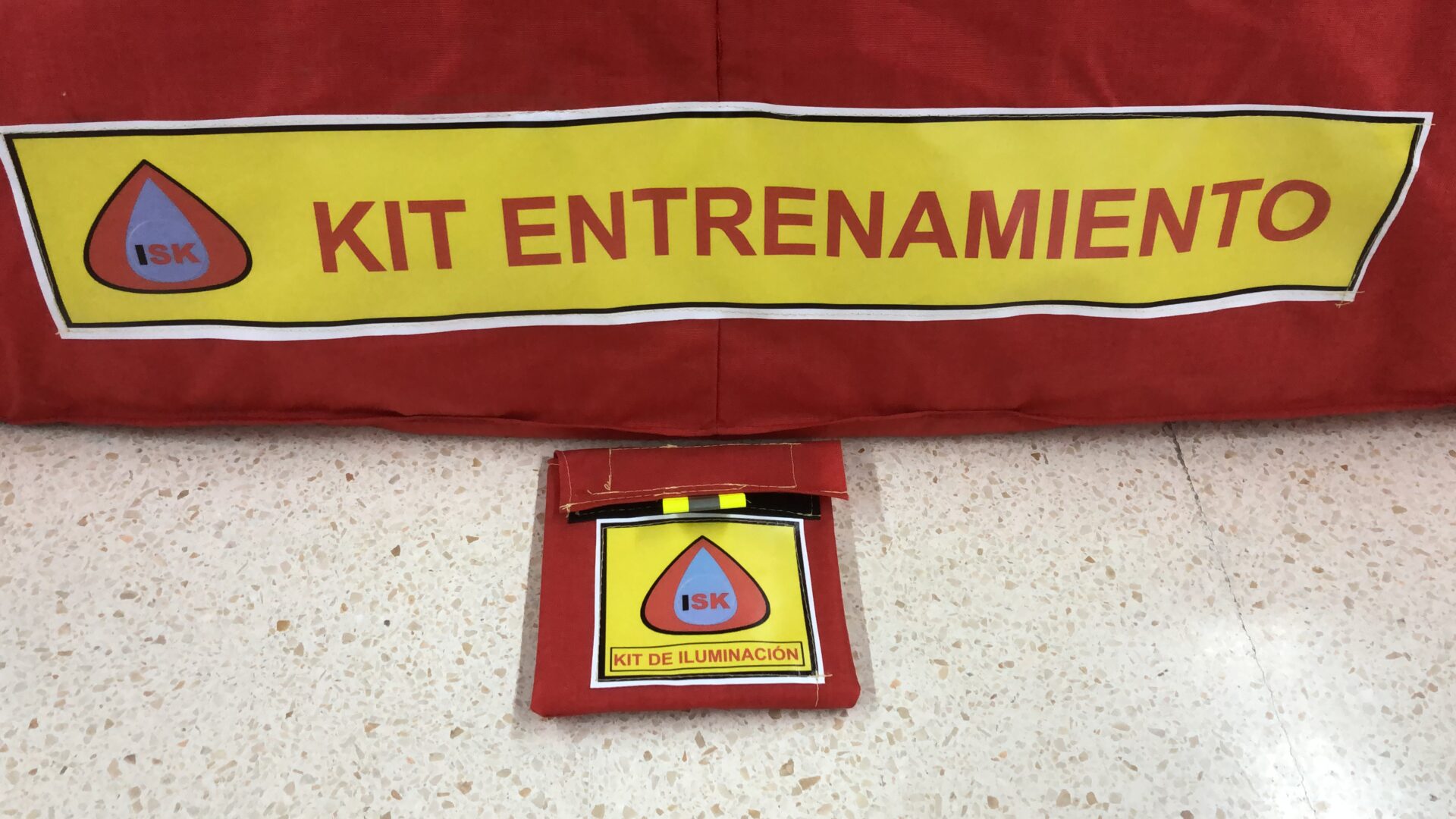

  • Carrying bag
  • Compressed air bottle with regulator (maintenance contract is not included)
  • Options: GPS, O2 Detector

Materials

1st and 2nd outer layer: with special radiant heat protection, 3rd and 4th inner layer: with special thermal protection.

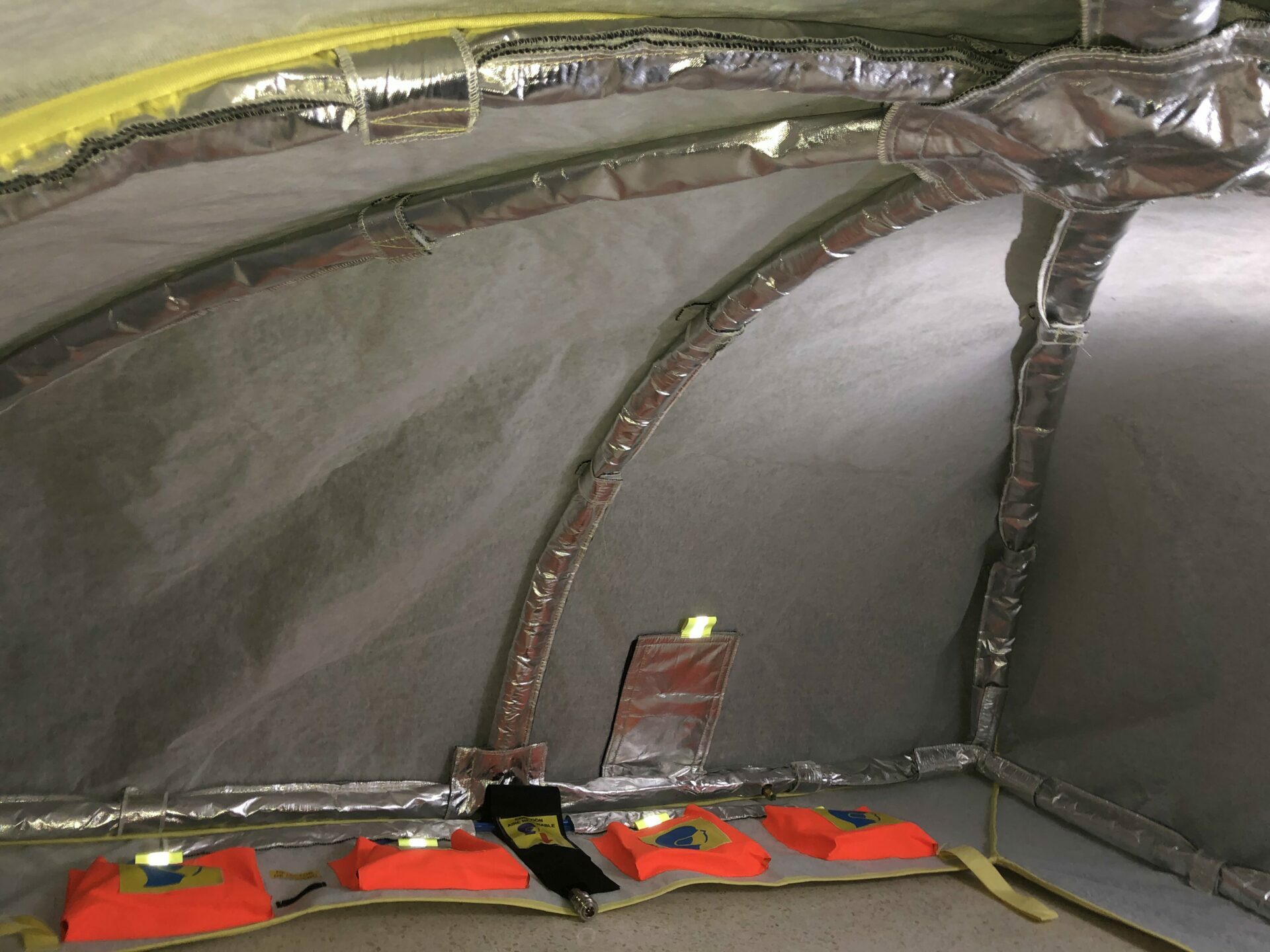

Pneumatic Structural System

  • Rubber hose protected with flame retardant fabric.
  • Inflation valve
  • Safety valve
  • Inflation time 10 seconds

*The elements that make up the structural system are existing products on the market and subject to self certifications.

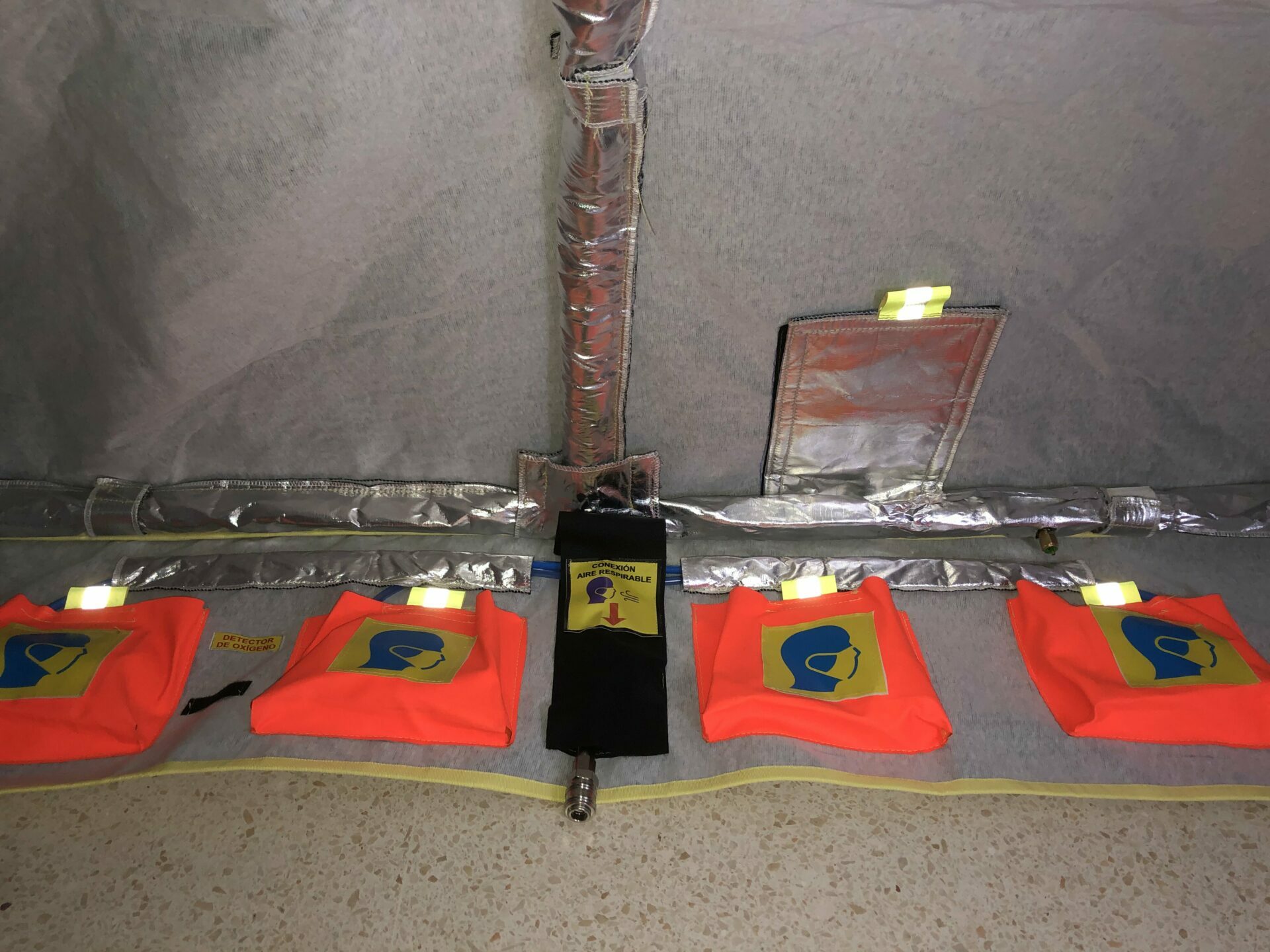

Breathing air distribution system

  • Quick connect system
  • Air distributor and flow regulation
  • Distribution duct

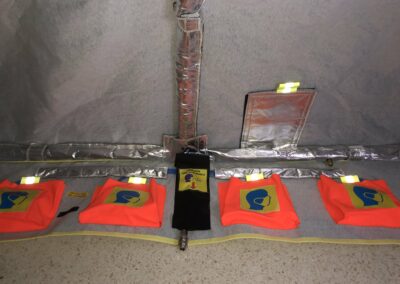

  • Individual air mask
  • Mask bag
    *The elements that make up the distribution system are existing products on the market and subject to self certifications.

Breathing Air Supply System

  • Breathing air bottle
  • Air regulator
  • Quick connection system
    *The elements that make up the air supply system are existing products on the market and subject to their own certifications.

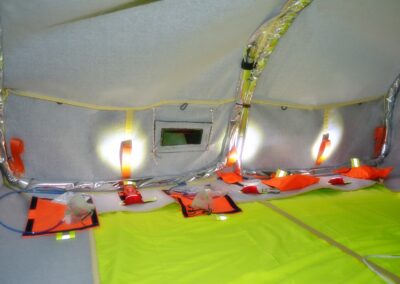

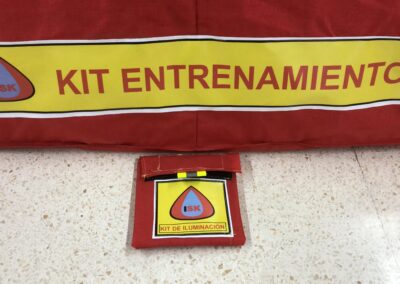

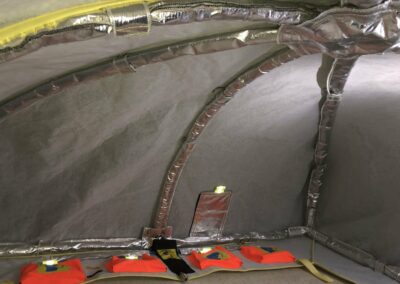

Interior lighting system

By means of chemical light and LED torch.
*The elements that make up the lighting system are existing products on the market and subject to our own certifications.

ISK Fire Survival

Fire Intervention in Forest

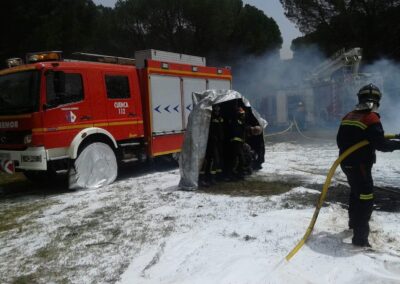

Despite being an indispensable element in the comprehensive safety kit, to deal with risk situations due to entrapment with pumper vehicles, its different of features combined with its effectiveness, make the device an element with a variety of applications in the different firefighting and rescue services.
It is used in interventions related to the protection of people or property, that may be threatened by fire, as well as an element of special interest to help establish and promote the protection, extinction and safety of personnel involved in all those operations of extinction and rescue that imply an imminent risk or threat to combatant personnel. This, combined with its adaptation ability to the different sources of water supply (fixed-mobile), coming from boost systems and firefighting networks, such as extinguishing vehicles, motor pumps, etc; make it a device with applications in different sectors and users.

Forest fire protection for fire man
