FS1 – Integral Protection Nozzle
The Integral Security and Self-Protection nozzle is specially designed to establish SECURITY – PROTECTION – EXTINCTION – SELF-PROTECTION – GEOLOCATION of persons and goods threatened by fire in entrapment situations. Its features and unique use confers it an entitlement of collective protection equipment in the fire sector.
Features of the FS1 nozzle

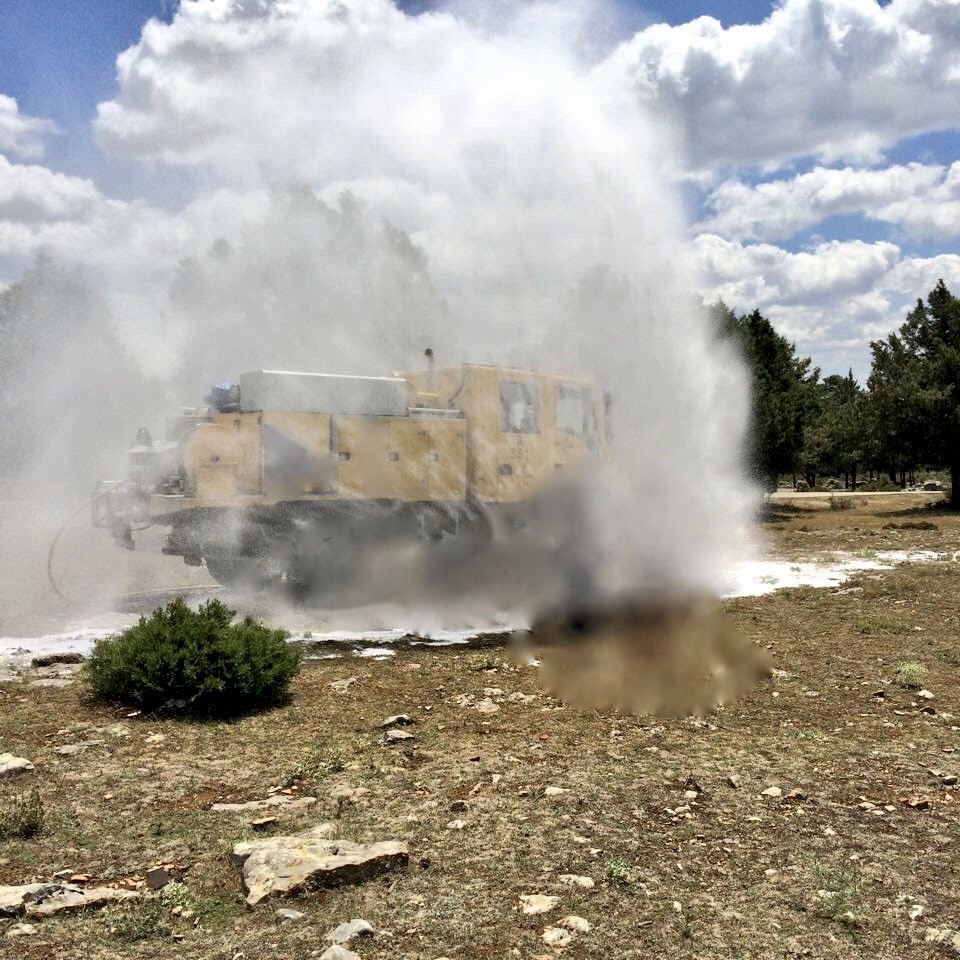

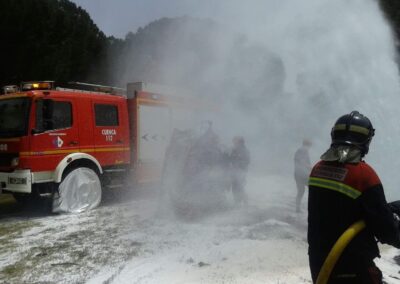

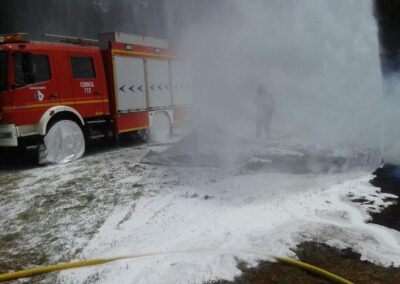

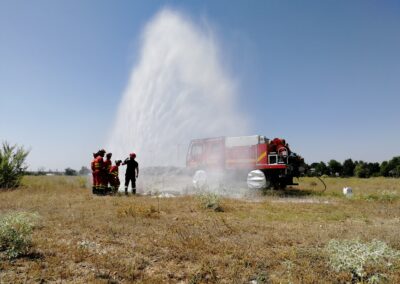

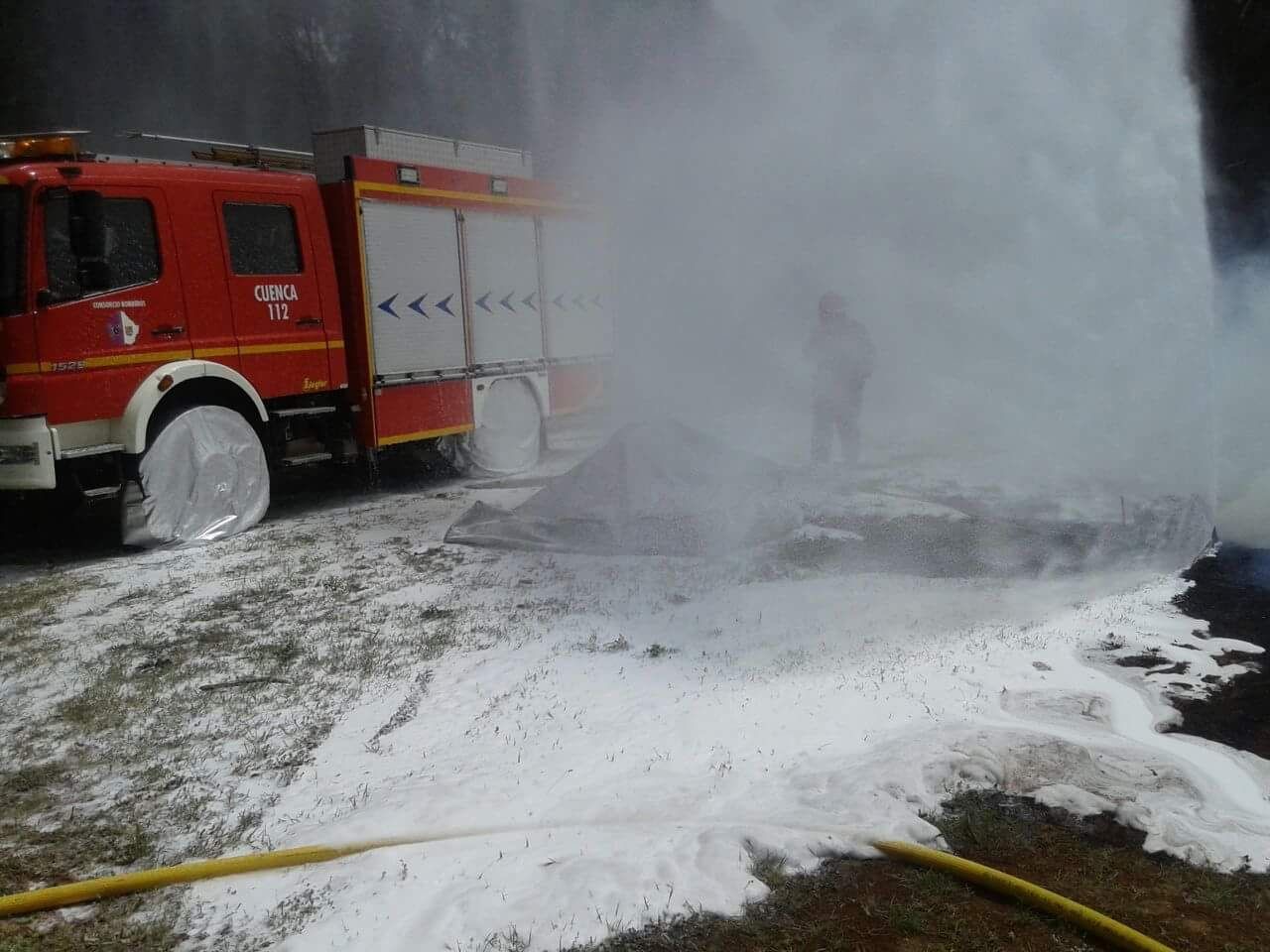

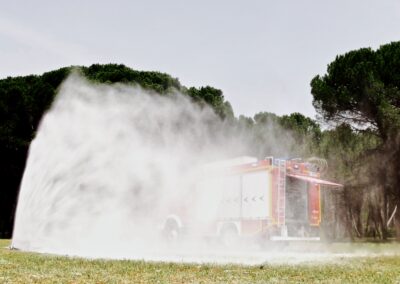

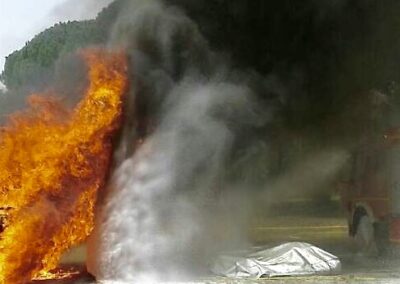

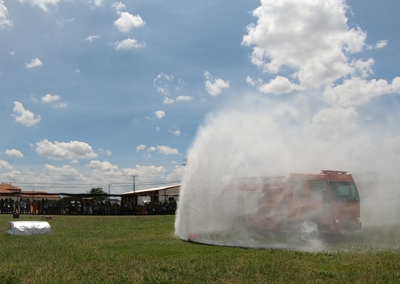

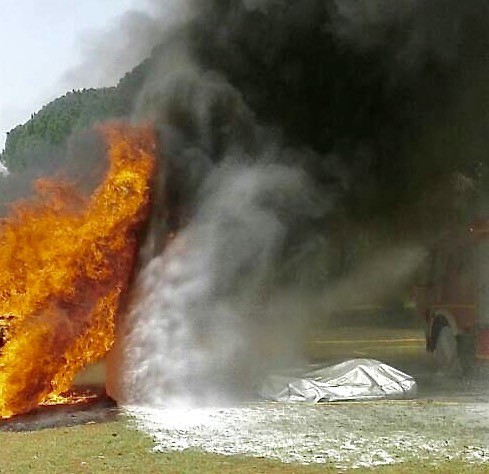

The Integral Safety nozzle offers protection against direct contact, radiation and convective heat by means of a water and foam screen that can exceed 10 metres width and more than 6 metres height.
Unattended water spraying, with previous installation.
Portable or fixed use device.
Portable geolocation device, attached and fireproof protected.
Variety of applications in other sectors, adaptable to different water supplies.
- Ability to adapt to different work surfaces.
- Working angle and adjustable flow.
- Built-in foam mixer, with adjustable percentage.
360º rotating hydraulic connection.
- Working pressure manometer.
- Extinguishing agent tank incorporated, with luminescent paint.
- External foam connection system, for suction of extinguishing agent, by foam injector.
European Directives on general product safety 2001/95/EC, Royal Decree 1801/2003 and directives on minimum safety and health requirements for the use of work equipment by workers.
- Directive 89/655/EEC,
- Directive 95/63/EEC,
- Directive 2001/45/EC
- Royal Decree 1215/1997
European Standard EN 15767-1:2009
Part 1. Applied clauses: 1.2/184.108.40.206/5.3.1/6.3.1/6.3.3/5.1.1/5.1.1/5.6.4
Includes the following components
Fire Hose (L = 13 m, . = 25mm).
Short term retardant (𝑉V = 9L 𝑙 ).
Foam inductor for external injection of extinguishing agent.
- Material of the nozzle body and handle support: Anodized Duraluminium.
- Material of the projection screen: Stainless steel.
- Material of the tank assembly – control panel: Aluminium.
- Tank capacity: 9 litres.
- Tank handle type: Technopolymer.
- Tank filler cap: Technopolymer with filter and overpressure valve.
- Weight: 10 kg.
- Weight when loaded: 19 Kg:
- Dimensions: (L) 400 mm x (H) 340 mm x (W) 200 mm
- Couplings incorporated: Barcelona type, Storz, NHST,SYM, UNI with 360º rotation. (Consult other types of fittings)
- Reference pressure (PR): 6 Bar
- Nominal pressure (PN): 16 Bar
- Maxt pressure: 40 Bar
- Recommended working pressure range: 30 bar in high pressure and 12 bar in low pressure, obtaining 300 l/min.
- Geolocation system (Optional): Mobile geolocation system protected with fireproof cover *(Consult the manufacturer’s technical data sheet supplied with the GPS).

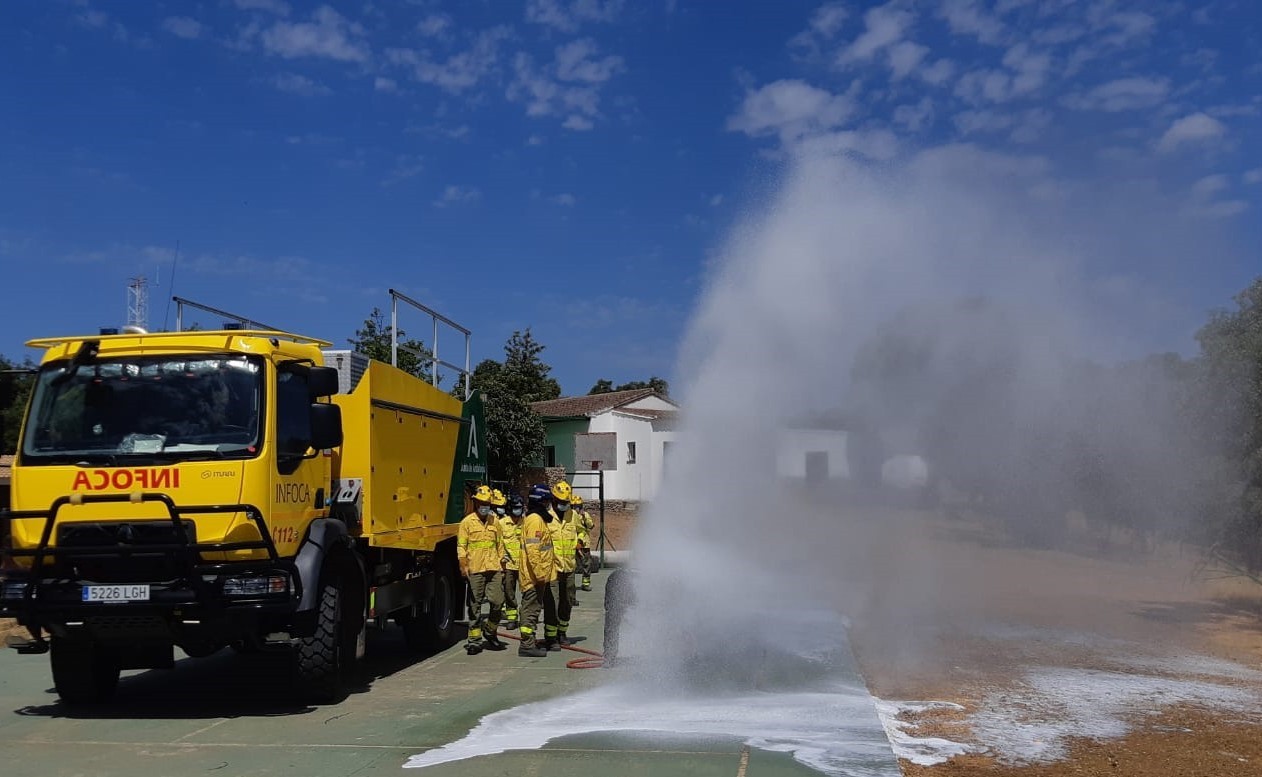

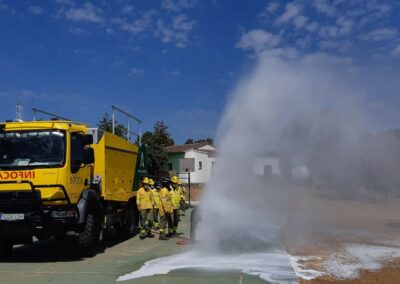

ISK Fire Survival

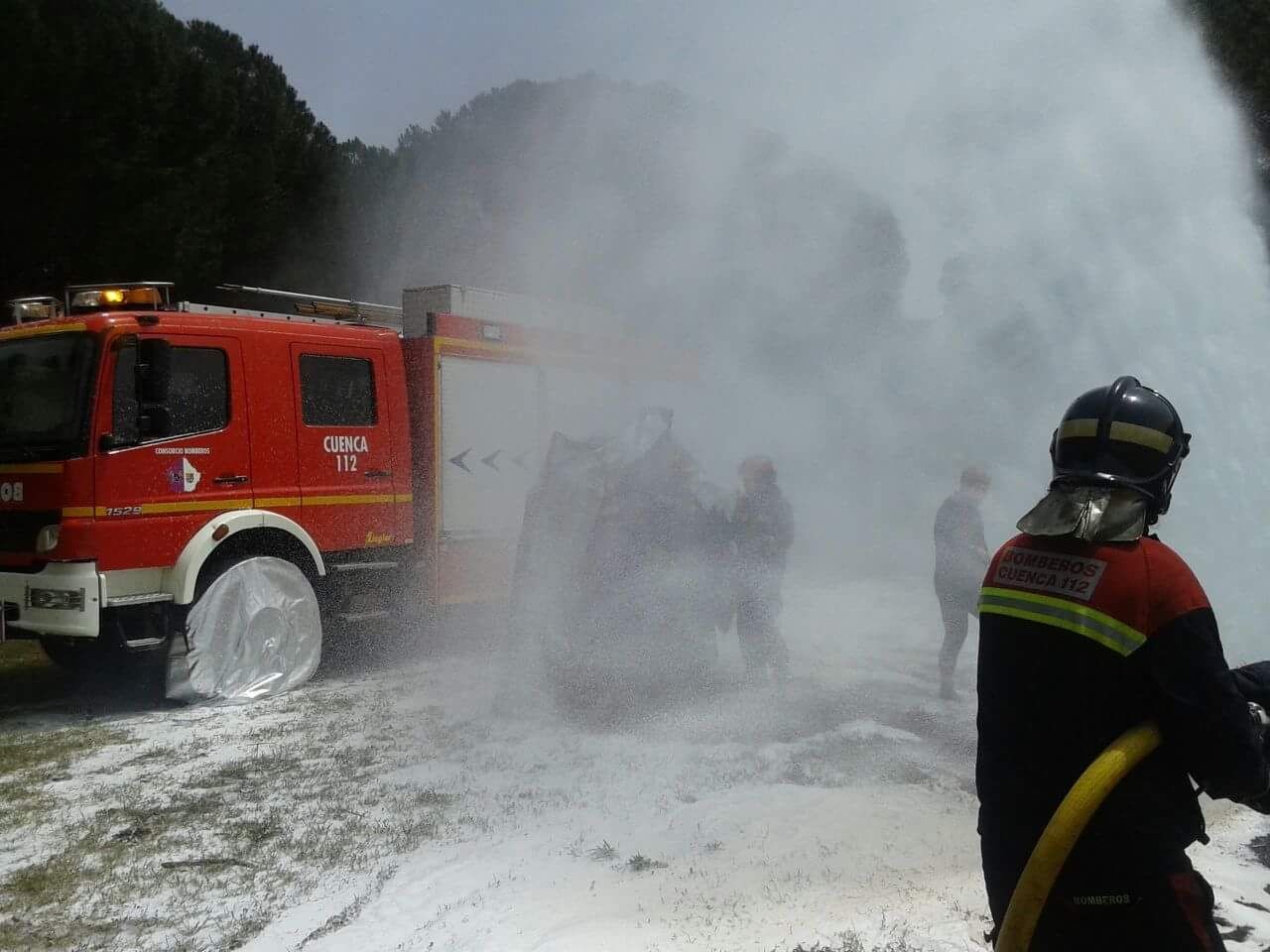

Fire Intervention in Forest
Despite being an indispensable element in the integral safety kit, to deal with risk situations due to entrapment with firetrucks, its features and effectiveness makes the kit an element with many applications in the different firefighting and rescue services.
It is used in interventions related to the protection of people or properties, that may be threatened by fire, as well as an element to help set up protection, extinction and safety of firemen involved in all those operations of extinction and rescue, that imply risk or threat to life. This, combined with its adaptation ability to the different water supplies from fire fighting vehicles, motopumps,…
